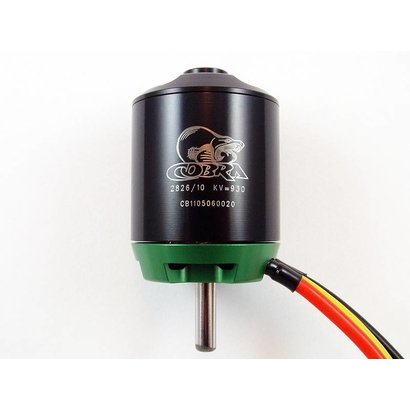

Cobra C-2826/10 Brushless Motor, Kv=930 *

Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed packa

Read the full product description

Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all six sides of the box, with 3 separate compartments to protect the motor, accessory pack and cross mount.

The Cobra 2826 series motors have a 5mm shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The internal bearing measures 11mm x 5mm x 5mm and the outer bearing measures a massive 16mm x 5mm x 5mm! The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Also included on the motor are ultra-flexible motor leads with high-temp silicone rubber insulation and 3.5mm bullet connectors already installed.

Included with every Cobra 2826 Series Motor is a complete accessory package which contains the following items:

● Heavy Duty 3mm Thick Cross Style Motor Mount
● Four M3x6mm Motor Mount Screws
● Bolt-On style threaded prop adapter with 3 screws
● Retaining Collar with Set Screw
● Three female 3.5mm bullet connectors
● Three pieces of heat-shrink tubing

Cobra 2826/10 Motor Specifications
 Stator Diameter  28.0 mm (1.102 in)
 Stator Thickness  26.0 mm (1.024 in)
 Number of Stator Slots  12
 Number of Magnet Poles  14
 Motor Wind  10 Turn Delta
 Motor Kv Value  930 RPM per Volt
 No Load Current (Io)  1.30 Amps @ 10 Volts
 Motor Resistance (Rm) per Phase  0.048 Ohms
 Motor Resistance (Rm) Phase to Phase  0.032 Ohms
 Maximum Continuous Current  45 Amps
 Max Continuous Power (3-cell Li-Po)  500 Watts
 Max Continuous Power (4-cell Li-Po)  660 Watts
 Max Continuous Power (5-cell Li-Po)  830 Watts
 Motor Weight  171 grams (6.03 oz.)
 Outside Diameter  35.0 mm (1.378 in.)
 Shaft Diameter  5.00 mm (0.197 in.)
 Motor Body Length  46.0 mm (1.811 in.)
 Overall Shaft Length  66.0 mm (2.598 in.)
 Motor Timing  5-10 degrees
 PWM Frequency  8 KHz
