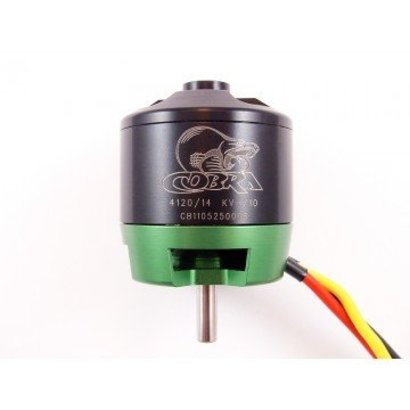

COB Cobra Motors Cobra C-4120/14 Brushless Motor, Kv=710 *

C-4120/14-710Kv
$69.99 Excl. tax
  • Availability: Out of stock
Out of stock

Product description






  Cobra C4120/14 Motor Propeller Data
  Motor Wind Motor Kv No-Load Current Motor Resistance I Max P Max (5S)
  14-Turn Delta 710 RPM/Volt Io = 1.99 Amps @ 14v Rm = 0.018 Ohms 68 Amps 1260 W

  Outside Diameter Body Length Total Shaft Length Shaft Diameter Motor Weight
  49.8 mm,  1.96 in. 51.8 mm,  2.04 in. 74.5 mm,  2.93 in. 6.00 mm,  0.236 in. 293 gm,   10.34 oz

  Prop Prop Input Motor Watts Prop Pitch Thrust  Thrust Thrust Eff.
  Manf. Size Voltage Amps Input RPM Speed Grams Ounces Grams/W
  APC 11x8-E 14.8 32.83 485.8 9,085 68.8 2035 71.78 4.19
  APC 11x8.5-E 14.8 36.00 532.8 8,964 72.2 2080 73.37 3.90
  APC 11x10-E 14.8 42.00 621.5 8,769 83.0 1898 66.95 3.05
  APC 12x6-E 14.8 34.03 503.7 9,039 51.4 2524 89.03 5.01
  APC 12x8-E 14.8 42.55 629.8 8,746 66.3 2286 80.64 3.63
